End devices, both clients and servers are connected to LANs. The LAN is how users access their network and reach other networks.
Local Area Networks (14.3.1)
The term local area network (LAN) refers to a local network, or a group of interconnected local networks that are under the same administrative control, as shown in Figure 14-4. In the early days of networking, LANs were defined as small networks that existed in a single physical location. Although LANs can be a single local network installed in a home or small office, the definition of LAN has evolved to include interconnected local networks consisting of many hundreds of hosts, installed in multiple buildings and locations.
The important thing to remember is that all the local networks within a LAN are under one administrative control. Other common characteristics of LANs are that they typically use Ethernet or wireless protocols, and they support high data rates.
The term intranet is often used to refer to a private LAN that belongs to an organization, and is designed to be accessible only by the members of the organization, employees, or others with authorization.

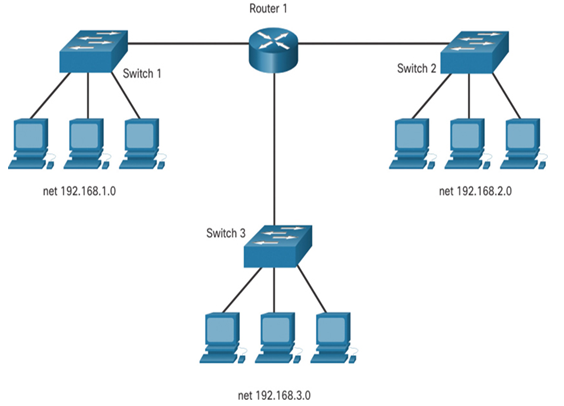

Figure 14-4 Collection of Local Networks Under the Same Administrative Control
Local and Remote Network Segments (14.3.2)
Within a LAN, it is possible to place all hosts on a single local network or divide them up between multiple networks connected by a distribution layer device. How this placement is determined depends on desired results.
All Hosts in One Local Segment
Placing all hosts on a single local network allows them to be seen by all other hosts, as shown in Figure 14-5. This is because there is one broadcast domain and hosts use ARP to find each other.

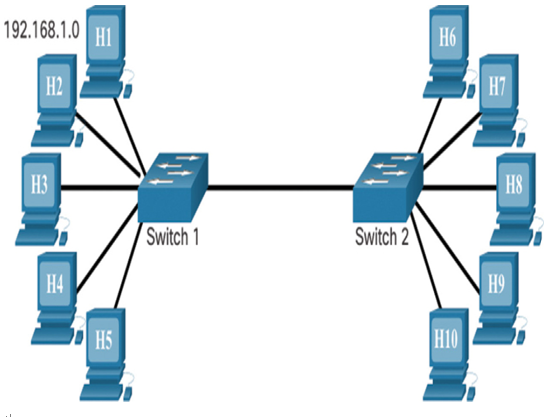

Figure 14-5 Example of a Local Segment
In a simple network design, it may be beneficial to keep all hosts within a single local network. However, as networks grow in size, increased traffic will decrease network performance and speed. In this case, it may be beneficial to move some hosts onto a remote network.
Advantages of a single local segment:
- Appropriate for simpler networks
- Less complexity and lower network cost
- Allows devices to be “seen” by other devices
- Faster data transfer – more direct communication
- Ease of device access
Disadvantages of a single local segment: - All hosts are in one broadcast domain which causes more traffic on the segment and may slow network performance
- Harder to implement QoS
- Harder to implement security
Hosts on a Remote Segment
Placing additional hosts on a remote network will decrease the impact of traffic demands, as shown in Figure 14-6. However, hosts on one network will not be able to communicate with hosts on the other without the use of routing. Routers increase the complexity of the network configuration and can introduce latency, or time delay, on packets sent from one local network to the other.

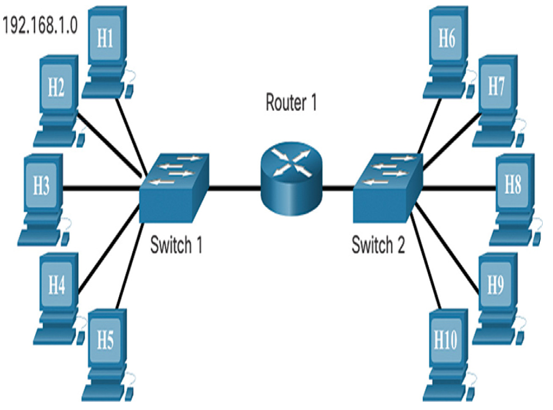

Figure 14-6 Example of Router Segmenting the Local Network
Advantages:
- More appropriate for larger, more complex networks
- Splits up broadcast domains and decreases traffic
- Can improve performance on each segment
- Makes the machines invisible to those on other local network segments
- Can provide increased security
- Can improve network organization
Disadvantages: - Requires the use of routing (distribution layer)
- Router can slow traffic between segments
- More complexity and expense (requires a router)
